PINS
Product Overview
- Designed for fastening into concrete and steel
- Created to be tough and durable.
- Consistent quality ensures every fastening lives up to Ramset standards.
Recommended for the following applications:
- 2x4 framing to concrete
- Electrical boxes
- Installing drywall track and plywood sub-flooring
CHOOSE THE RIGHT PIN
ELIGE EL PIN CORRECTO
STEEL TO STEEL
ACERO A ACERO
STEEL TO CONCRETE
ACERO A CONCRETO
WOOD TO STEEL
MADERA A ACERO
WOOD TO CONCRETE
MADERA A CONCRETO
TOOL CAPACITY
CAPACIDAD DE LA HERRAMIENTA
1 / 2”
12 MM
3”
76 MM
Available Pin Sizes
| DRIVE PINS | AVAILABLE PACK SIZES | WHERE TO BUY |
|---|---|---|
| .300 x 1/2” | 100 | #100138083 |
| .300 x 3/4” | 100 | #100142089 |
| .300 x 1” | 100 | #100048482 |
| .300 x 1-1/2” | 100 | #100063715 |
| .300 x 2” | 100, 25 | #100146047 |
| .300 x 2-1/2” | 100 | #100007730 |
| .300 x 3” | 100 | #100119390 |
| DRIVE PINS WITH WASHERS | AVAILABLE PACK SIZES | WHERE TO BUY |
|---|---|---|
| .300 x 1” | 100 | #100559049 |
| .300 x 1-1/2” | 100, 25 | #100072597 |
| .300 x 1-1/4” | 100 | #206501854 |
| .300 x 2“ | 100 | #100488490 |
| .300 x 2-1/2” | 100, 15 | #100024795 |
| .300 x 3” | 100, 15 | #100067384 |
| RAMGUARD DRIVE PINS FOR USE IN TREATED LUMBER | AVAILABLE PACK SIZES | WHERE TO BUY |
|---|---|---|
| .300 x 2-1/2" with Washers | 100 | #100261079 |
| .300 x 3” with Washers | 100 | #100298488 |
LOADS
Product Overview
- Available in four color-coded and numbered power levels based on fastening force needed.
- Enough power to penetrate concrete, hollow block, and steel.
- Harder substrates require high power levels.

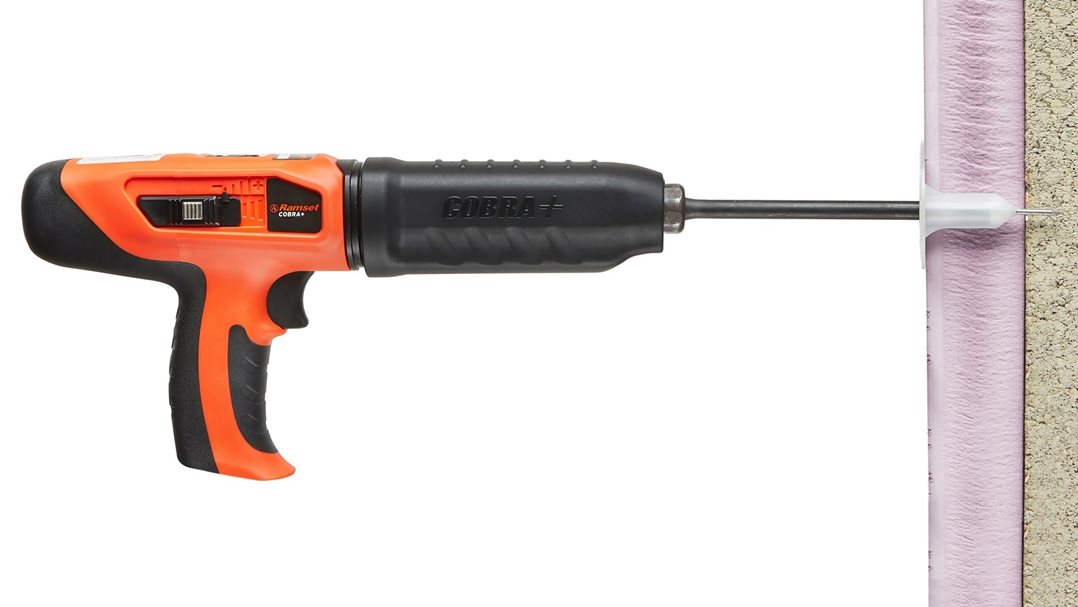

COBRA+
MASTERSHOT
TRIGGERSHOT
HAMMERSHOT
PROFESSIONAL USE
HIGH USE
MODERATE USE
OCCASSIONAL USE
USE .27 CALIBER STRIP LOADS
USE .22 CALIBER SINGLE SHOTS
USE .22 CALIBER SINGLE SHOTS
USE .22 CALIBER SINGLE SHOTS
2
3
4
2
3
4
2
3
4
.27 CALIBER STRIP LOADS
.22 CALIBER SINGLE SHOT LOADS
- Power levels from Green to Red
- Complete powder-burn prevents residue build-up
- 10-shots per strip increases speed
- Power levels from Brown to Yellow
- Complete burn keeps the tool clean
- Precise powder weighing prevents under or over-packed shots
2 - CONCRETE BLOCK
3 - CONCRETE
4 - HARD AGGREGATE
5 - BEAM/STEEL
| CALIBER | POWER LEVEL | MATERIALS | WHERE TO BUY |
|---|---|---|---|
| .22 |
2
|
CONCRETE BLOCK | #100192296 |
| .22 |
3
|
CONCRETE | #100207067 |
| .22 |
4
|
HARD AGGREGATE | #100187029 |
| .27 |
 |
CONCRETE | #100314687 |
| .27 |
 |
HARD AGGREGATE | #100190942 |
| .27 |
 |
BEAM/STEEL | #100176798 |
